Here you find the frequently asked questions about our products.
Kloppmann's question time
In this video, Andreas Kloppmann answers many of the frequently asked questions. More videos will follow soon.
We've also put together some basic information to help you choose your pickups below.
What is the right spacing for my bridge humbucker (G-Spaced or F-Spaced)?
Our humbuckers are available in two different variants, namely G-Spaced and F-Spaced (also called Trembucker). The variants differ in the distance of Polepieces / Poleschrauben each other and thus in their width. The name comes because mainly guitars from Gibson G-Spacing and Fender guitars have primarily an F-spacing. The right spacing for your guitar you can find out by measuring the distance of the low to the high e-string in the area of the bridge pickup with a ruler. If the distance is about 50 mm, choose a G-Spaced humbucker. If the distance is about 53 mm, choose an F-Spaced humbucker. For the neck pickup, there is no distinction, since here on all guitars, the distances are about the same.
What is the difference between 2-wire braided shield and 4-wire humbuckers?
2-wire humbuckers can only be switched in serial humbucker mode, while 4-wire humbuckers offer a wide variety of circuit options such as coil splitting, series / parallel or in / out of phase.
What is the difference between the RWRP and Straight singlecoil polarity?
In the intermediate positions of a 5-way switch on a Stratocaster, the RWRP single coil is hum-free, while the straight version has more centers.
What are the color codes for Kloppmann 4-wire humbuckers?
Black = start the screw coil
White = end of the screw coil
Red = end of the slug coil
Green = start the slug coil

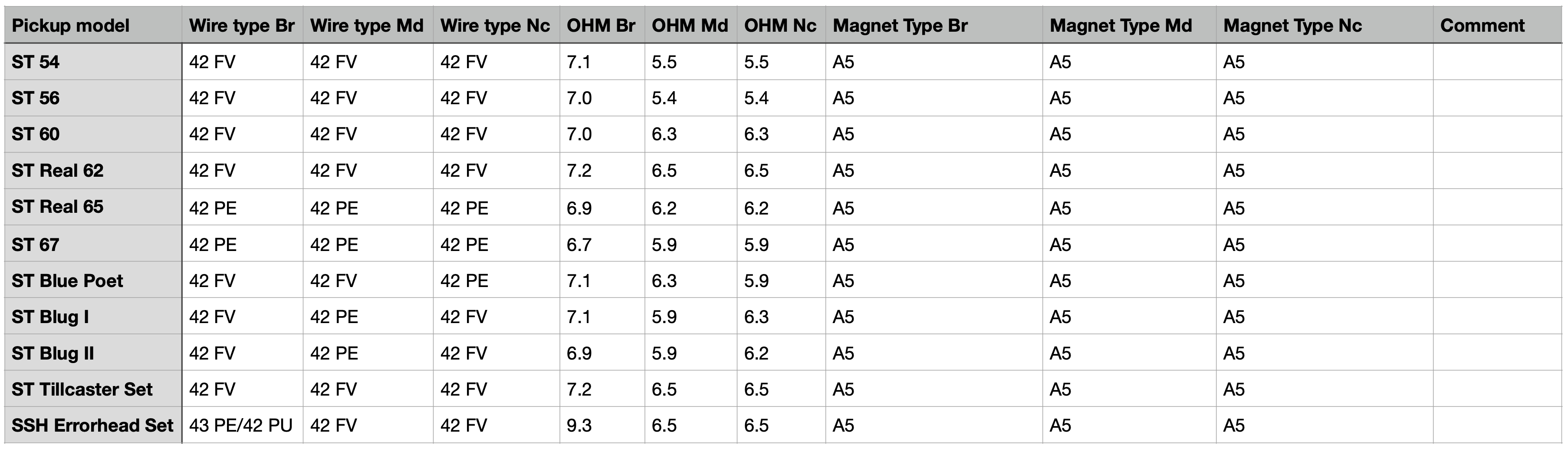

Which pickup winding wire is used in the Kloppmann Stratocaster pickup sets?
ST 54 | Neck 1954, Middle 1954, Bridge 1955 (Formvar)
ST 56 (formerly ST 50) | Neck 1956, Middle 1957, Bridge 1959 (Formvar)
ST 60 | Neck 1960, Middle 1964, Bridge 1962 (Formvar)
Real 62 | Neck 1962, Middle 1962, Bridge 1963 (Formvar)
Real 65 | Neck 1965, Middle 1965, Bridge 1965 (Plain Enamel)
ST 67 | Neck 1967, Middle 1966, Bridge 1967 (Plain Enamel)
ST BLUG Thomas Blug Signature Set | Neck 1960, Middle 1966, Bridge 1962 (FV / PE / FV)
ST BLUG II Thomas Blug Signature Set | Neck 1964, Middle 1966, Bridge 1965 (PE / PE / PE)
Errorhead SSH Set | Neck 1962, Middle 1962, HB DML (FV / FV / PE)
ST Tillcaster | Neck 1962, Middle 1962, ST Tillcaster (Formvar)
Blue Poet Set | Neck 1969, Middle 1960, Bridge 1954 (PE / Formvar / Formvar)
